SQUID…Ever Heard of it??


SQUID is an acronym for Superconducting Quantum Interference Device[1][2][4]. It is a very sensitive magnetometer which measures small/weak magnetic fields very accurately[2].

Fig 1. Quantum Design MPMS XL SQUID[8]

The sensitivity of the SQUID is linked to measuring the changes in the magnetic field corresponding to one flux quantum[7].

Principle of Working

The principle behind SQUID was discovered by a theoretical physicist, Brian Josephson in 1962 at the University of Cambridge while pursuing his Ph.D.[12].

In a SQUID, two superconductors are separated by thin insulating layers. At the junction, a current will flow without any voltage drop. If there is a voltage drop, the current will oscillate at a frequency in sync to the voltage and this is linked to the magnetic field.

This superconductor junction is called as Josephson junction & effect is called a Josephson effect[2][7].

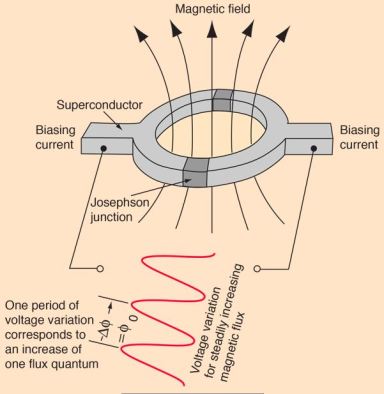

Fig 2. SQUID working concept[2][7]

Now as the current density through a weak electric contact between the two superconductors depends on the phase difference ‘Δφ’ of the two superconducting wave functions – the time derivative of Δφ is correlated with the voltage and is used for sensing via electronic circuitry as shown below.

Fig 3. SQUID Flux-Voltage Conversion[4][5][6]

The following video gives a better idea regarding SQUID along with the sample loading & movement along the pickup coil which disrupts the magnetic field of the Josephson junction.

Realizing SQUID

  • The materials used to realize SQUID’s are normally made from pure niobium or a lead alloy with 10% gold or indium[5][8][14]
  • High-temperature SQUID’s are realized using YBCO. In this case, Liquid Nitrogen is used as a coolant instead of helium[5][8][14]

Types of SQUID

Radio frequency (RF) SQUID
  • Consists of only one Josephson junction
  • Cheaper
  • Less Sensitive
Direct Current  (DC) SQUID
  • Two or more Josephson junction
  • Expensive
  • Sensitive


  • SPMR for cancer detection[13]
  • Voltameter for voltage detection
  • Magnetic Tanks in biological labs and food industry
  • Quantum Information Processing[11]
  • Defect Detection
  • Gradiometer for surveying and mineral exploration[10]
  • Defense application like a submarine and mine detection
