III-V semiconductors are the preferred choice for RF, Power and space/ defense applications. Though expensive, they offer many advantages over silicon like higher power handling capacity, break down voltage etc.

Fig.1 Typical HEMT structure with 2DEG at AlGaN/GaN interface[1]

We are familiar with the concept of two-dimensional electron gas(2DEG) in III-V semiconductors which form the basis of High Electron Mobility Transistor(HEMT).

The 2DEG is created due to a triangular quantum well formation at the heterojunction(between semiconductor materials) causing quantum confinement[3][4].

Image result for HEMT 2DEG

Fig.2 Typical HEMT structure with 2DE G at AlGaN/GaN interface[2]

As ionized impurities are absent(to induce electrons), the scattering is minimal, leading to higher mobility(hence current) versus Si-based devices.The electron density in case of III-Nitride 2DEG is about ∼5 × 1013 cm−2.

In 2004, the turf of III-V semiconductors was challenged when researchers found the presence of high-density 2DEG at an oxide interface(LaAlO3 & SrTiO3) which exceeded the values seen in III-Nitride 2DEG[5][6]. Similarly, GdTiO3-SrTiO3 heterostructure grown on an oxide substrate has demonstrated 2DEG electron density >3 × 1014 cm−2 [5][7]. Devices based on these oxides have the potential of being used as sensors, Field Effect Transistors(FETs) etc.

Related image

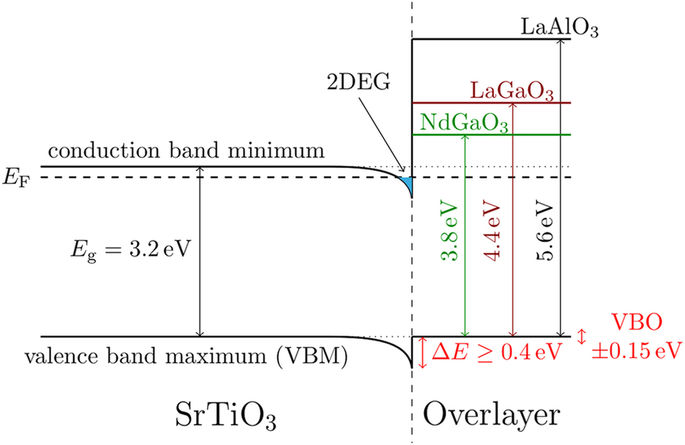

Fig.3 Band diagram of STO-LAO interface with 2DEG[6][11]

The only hindrance to realizing the full potential of oxides for Optronics application is the current use of single crystal oxide substrates for material/film growth[5].

For commercial viability, we would like to use single crystal substrates like silicon(001) or (111) with some demonstrations already being made for adoption[8][9][10]

  • LTO-STO heterostructure on Si(100) with a 2DEG charge density of 8.9 × 1014 cm−2
  • GdTiO3-SrTiO3 on Si(001) with a 2DEG charge density of ∼9 × 1013 cm−2

Taking another step in this direction, researchers at Yale University have added a new substrate for the growth of oxides – GaAs(III-V material)[5]. They have been able to grow GdTiO3-SrTiO3 heterostructure on GaAs wafer using MBE. The electron density obtained at the GTO–STO interface is ∼2 × 1014 cm−2 [5].



Further Reading

L. Kornblum et. al.,”Oxide heterostructures for high-density 2D electron gases on GaAs”, Journal of Applied Physics,123,025302,2018

In the future, post optimization and scaling, the devices fabricated on these films can act as the baseline for the next-generation electronic and optical devices.
